The automatic assembly equipment for sealing rings (O-rings) is characterized by including a sealing ring feeding module and a sealing ring support module. The sealing ring feeding module is used to transport the sealing ring to the assembly port end and transmit the positioning signal of the sealing ring to the sealing ring support module; When the sealing ring support module receives the sealing ring positioning signal from the sealing ring feeding module, the sealing ring support module is used to open the sealing ring and fit the opened sealing ring onto the designated assembly position of the workpiece to be assembled.
To improve the sealing effect on the workpiece, it is necessary to insert the sealing ring into the groove of the workpiece. During installation, the sealing ring should be stretched and extended over either end of the workpiece before being inserted into the groove.
Due to the increasingly compact shape of the workpiece, the size of the sealing ring is also getting smaller, which brings great inconvenience to the installation work. The existing automatic assembly equipment for sealing rings (O-rings) generally relies on manual assembly, resulting in a high rate of product failure and limited assembly efficiency, which is time-consuming and labor-intensive, and greatly increases production costs. Meanwhile, due to the low assembly speed of manual operations, it is difficult to adapt to the needs of automated assembly and fierce market competition.

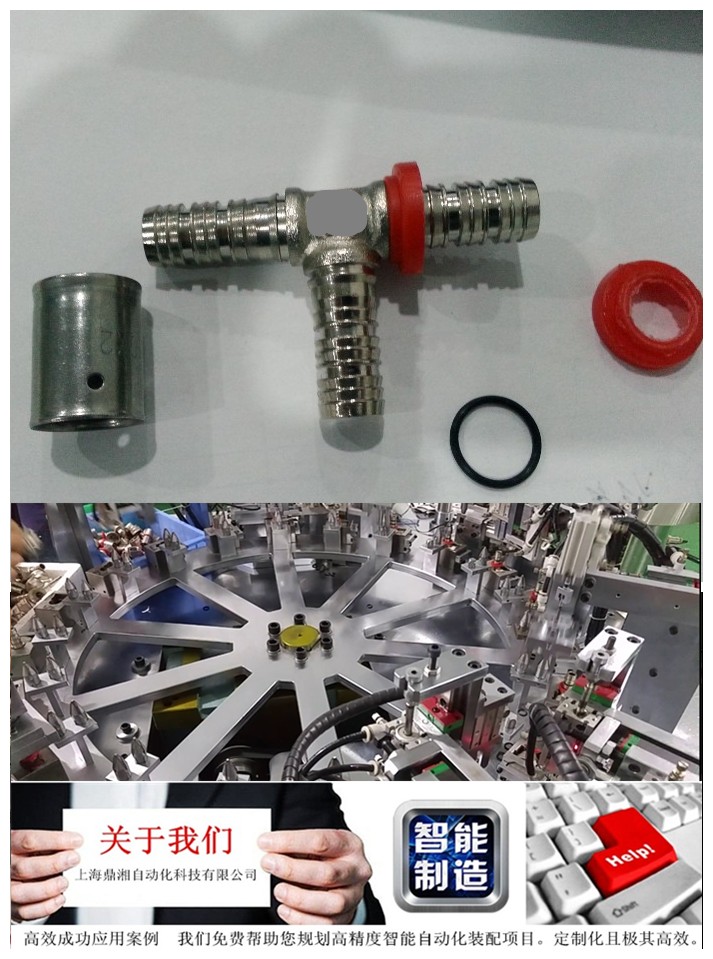

Sealing ring (O-ring) automatic assembly equipment
?
Equipment Overview:
This equipment adopts a complete set of imported "PLC" programmable circuit, touch screen operation, LCD display fiber optic, fiber optic photoelectric detection, and electromechanical integration control. This machine is a complete assembly line that integrates O-ring, valve core automatic feeding, automatic O-ring fitting, automatic oil spraying, and automatic unloading and packing. The equipment has a high degree of automation and adopts a multi line approach to save labor costs and equipment space.
A sealing ring (O-ring) is an annular cover composed of one or several parts, fixed on one ring or gasket of a bearing and in contact with another ring or gasket or forming a narrow labyrinth gap to prevent lubricating oil leakage and foreign object intrusion. Currently, it is used in military products, assembly automation, automated assembly, precision assembly automation, medical device automation assembly, hardware and electronic automation assembly line, Shanghai non-standard assembly automation customization, robot assembly automation, automated non-standard assembly, medical device automation assembly, valve assembly automation production line, military product assembly automation, automated assembly production line, assembly automation detection, non-standard assembly automation production line, automotive parts assembly automation, assembly detection automation, stapler assembly automation, intelligent assembly automation production line, O-ring sealing ring assembly automation is widely used in industries such as HVAC, fire protection, piping systems, automobiles, household appliances, toys, sports equipment, pneumatic components, and sanitary ware.
?
Equipment efficiency: 7000 PCS/hour
Scope of application: P6-P30mm sealing ring (O-ring)
Device Function
1. The material box can be added or extracted at any time during work;
2. Different sizes of sealing rings (O-rings) can be adjusted in assembly height and size by changing the fixture;
3. The fuel injection device can adjust the fuel level, and the low oil level detection alarm in the storage tank;
4. Apply oil to the groove and surface of the sealing ring of the assembled product;
5. Product assembly defect detection, defective products can be sorted and extracted individually;
6.) Touchscreen display of finished and defective product data;
7.) One machine dual line: If one line malfunctions and stops for maintenance, it will not affect the normal operation of the other line. O-ring automatic assembly machine, sealing ring automatic ring machine, sealing ring automatic assembly equipment
